DTP-2000 Series Bearing Roundness Machine
Main Parameter:It can measure the roundness, concentricity, coaxiality, eccentricity, etc. of various regular and irregular ring-shaped workpieces. Analysis function: static waviness, dynamic waviness, surface waviness (Wc, Wp, Wv, Wt, Wa, Wq), spectrum analysis, wave
- Product Overview

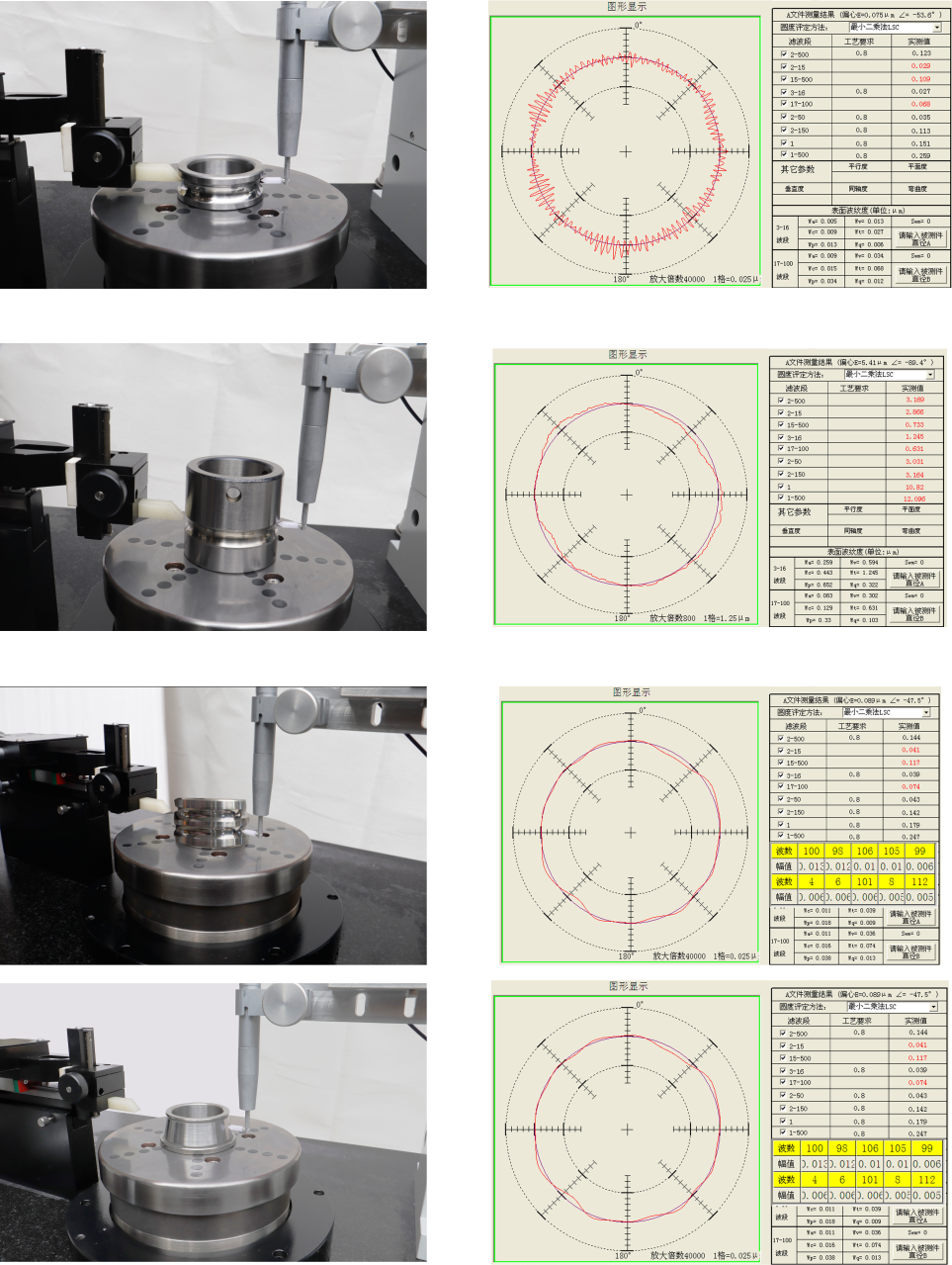

- Measurement Case
- Download
Bearing Roundness Machine
Bearing Roundness Measuring Machine/Instrument
MAIN FUNCTIONS
It can quickly measure the roundness, corrugation, harmonic amplitude, coaxiality, concentricity, shaft curvature, spectrum analysis, wave height, wave width analysis, etc. of inner and outer rings of bearings.
Roundness evaluation method : minimum area method, least squares method, minimum external circle method, maximum internal tangent circle method roundness
Filter bands : 2-500, 2-15, 15-500, 2-50, 2-150, 1-500, eccentric
Manual arbitrary band selection ripple degree : 3-16, 3-17, 17-100
Standard Models
Item/Model | DTP-2000C | DTP-2000D | |
Main axis accuracy | ±0.025μm | ±0.0125μm | |
System accuracy | ≤0.06μm | ≤0.03μm | |
Worktable | Table diameter | φ140mm | |
Turning diameter | φ200mm | ||
Load capacity | 10Kg | ||
Rotate speed | 0~180r/min | ||
Sensor | Measuring range | 30μm(radius difference) | |
Resolution | 0.01μm | ||
Stylus form | φ2mm Nylon probe | ||
All the above data are default configuration for standard models. Customized or OEM is available upon specific request.
