OPT Series Aspheric Roughness Profile Machine
Main Parameter:● Static force measurement (mN): 0.75 ● Contour measurement accuracy (μm): <0.5 ● Measurement repeatability (μm): <0.3 ● Measurable maximum angle (°): 77 ● Measurable Maximum Diameter (mm): 100 ● Measurable maximum thickness (mm): 50
- Product Overview

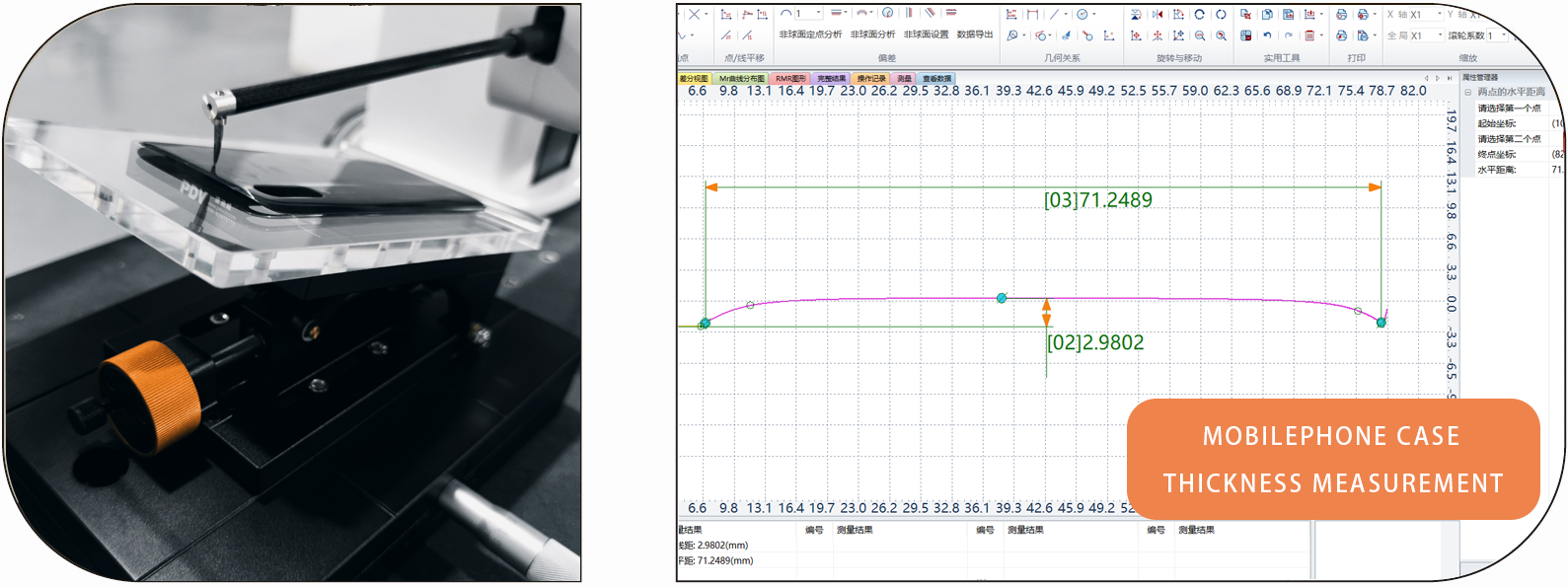

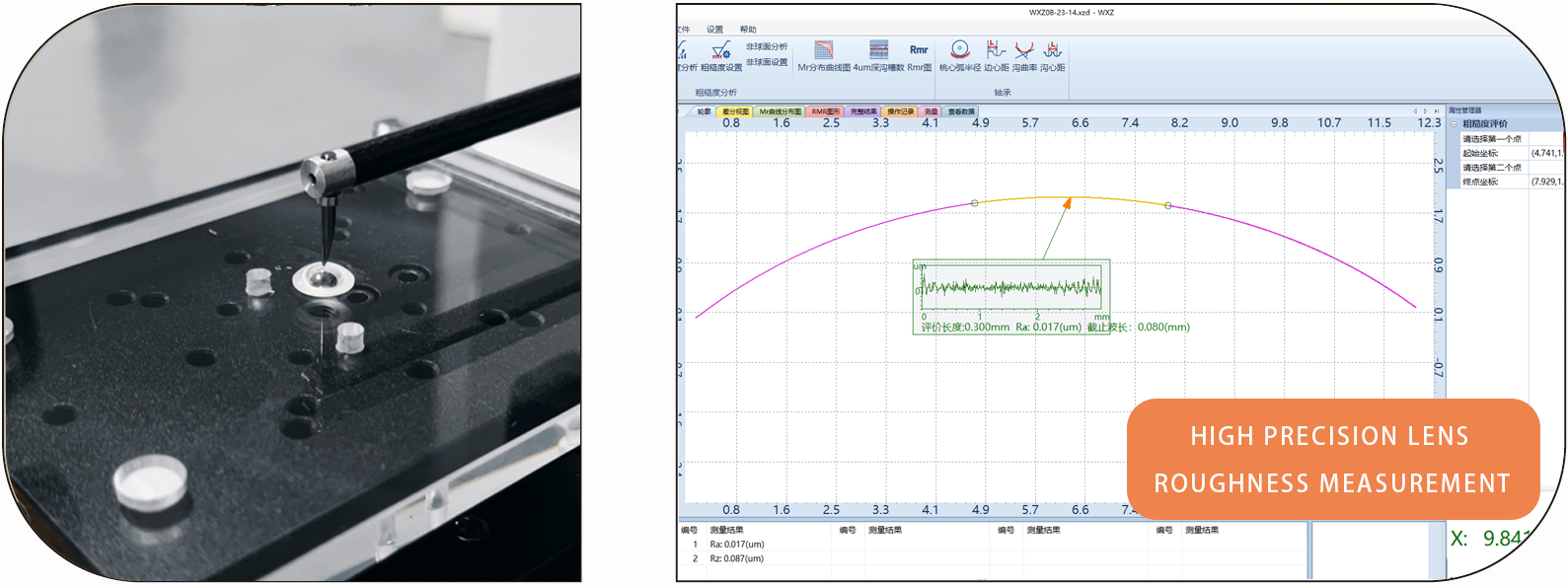

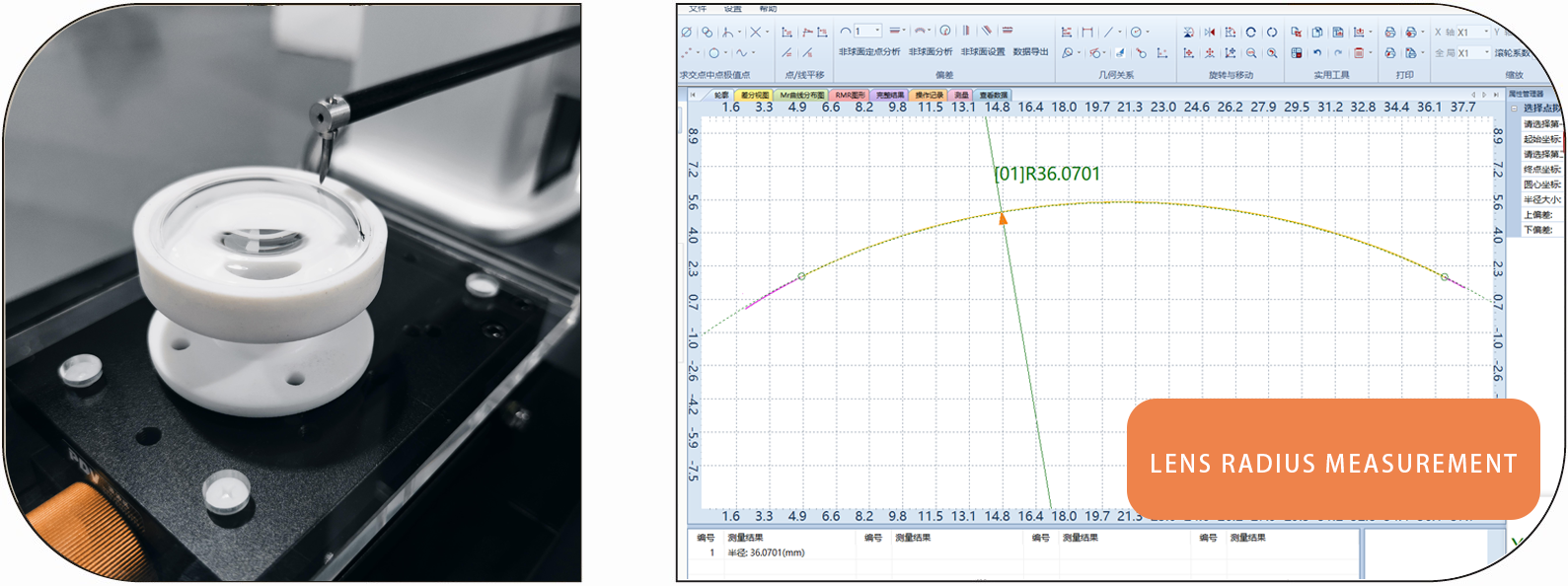

- Measurement Case
- Download
Aspheric Contour & Roughness Measuring System
Contour and surface roughness measurement in one machine
Specially developed for optical components, with high resolution and large range, which can meet the measurement needs of most of the optical components, and can be customized for the measurement and analysis of optical components in different industries.
China form measuring instrument supplier manufacturer
Main Functions
1
Contour Measurement
Point: point, midpoint, intersection point, highest point, lowest point
Line: straight line, cut line, vertical line, parallel line, flat line
Circle: round, ellipse, cut circular
Angle: angle, horizontal angle, vertical angle
Position tolerance: straightness, convexity, contour, vertical, parallelism
Auxiliary generation: including auxiliary points, auxiliary lines, auxiliary circles
2
Roughness Analysis
3
3
Aspheric Analysis
Ra，Rt，F(xiàn)ig，Smx，Smn，Tilt，Xp，Xv，Xt
Main Features
● The first domestic technology of autonomous intellectual property rights: using grating sensors to meet the measurement of roughness and contour size at the same time
● No need to modify mathematical methods and close to zero friction coefficient rails, which can maintain a high -precision measurement benchmark for a long time. The accuracy is consistent.
● Custom template, batch measurement, automatic marking
Standard Models
Item | Parameters | |
Measuring Range | X axis (horizontal guide) | 100mm |
Straightness | 0.4μm/100mm | |
Climbing angle | Rise angle 77°, fall angle 88° | |
All the above data are default configuration for standard models. Customized or OEM is available upon specific request.
китайская контурно-измерительная машина китайская машина для измерения круглости
Китай контурные измерительные машины круглые измерительные машины производитель экспортер поставщик
machine à mesurer les contours en Chine machine à mesurer la circularité fabricant exportateur fournisseur
china contorneadora medidora de redondez fabricante exportador proveedor
????? ???? ??? ???? ?????? ???? ?????? ?????
- Contact us for more parameter information -
